| Model |
|
YCWE021XSME |
| Refrigerant |
|
R410A |
| Refrigeration |
Nominal Refrigerant Capacity |
76.2 kW |
|
Nominal Input Power |
14.4 kW |
|
COP |
5.29 kW/kW |
| Heat Recovery |
Heat Recovery Volume |
90.6 kW |
|
Nominal Input Power |
14.4 kW |
| IPLV |
|
6.85 kW/kW |
| Power Supply |
|
380 (400) /3/50 V/Ph/Hz |
| Rated Current |
|
29.4 A |
| Maximum Continuous Running Current |
|
46.4 A |
| Compressor |
Model |
Hermatic scroll |
|
Quantity |
2 Set |
| Condenser |
Diameter of water pipe |
DN50 mm |
|
Connection type |
Clamp |
|
Nominal water flow |
16.4 m³/h |
|
Water pressure drop |
72 kPa |
| Evaporator |
Diameter of water pipe |
DN50 mm |
|
Connection type |
Clamp |
|
Nominal water flow |
13.1 m³/h |
|
Water pressure drop |
73 kPa |
| Outline Dimension |
Height |
1330 mm |
|
Length |
1480 mm |
|
Width |
775 mm |
| Weight |
Transport weight |
380 kg |
|
Operating weight |
430 kg |

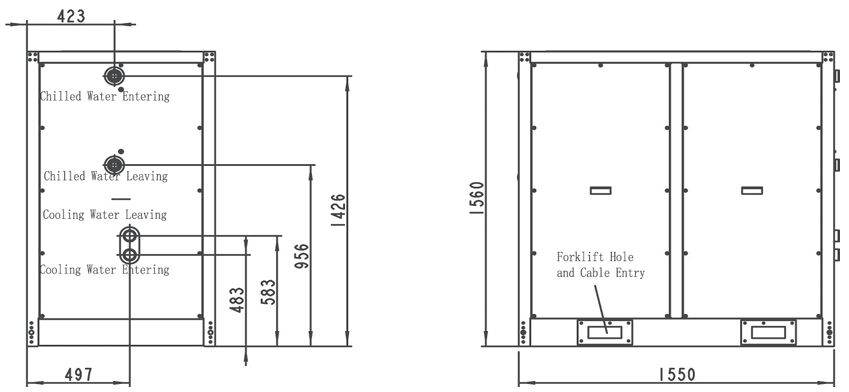

| Outline Dimension (with packaging) |
Height |
1560 mm |
|
Length |
1550 mm |
|
Width |
910 mm |
| Weight (with packaging) |
Transport weight |
530 kg |
|
Operating weight |
580 kg |
