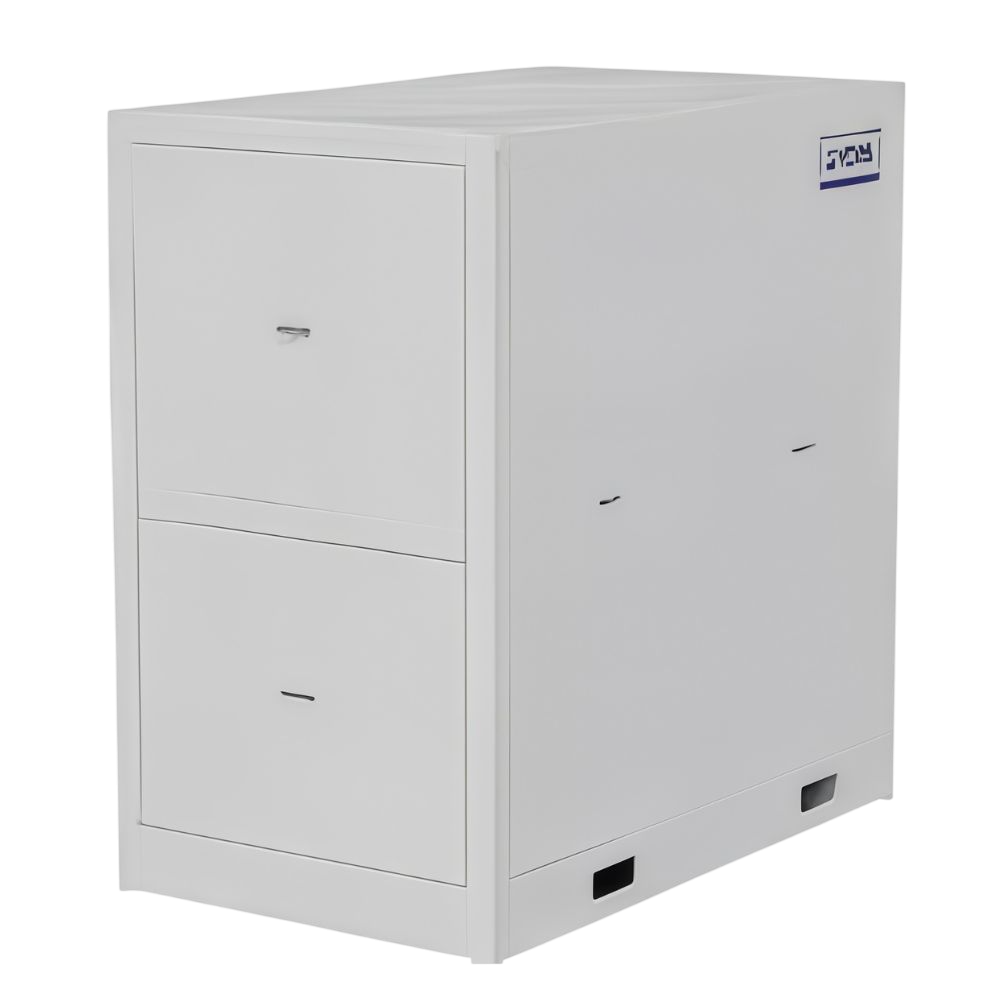

| Model |
|
YCWE032XSME |
| Refrigerant |
|
R410A |
| Refrigeration |
Nominal Refrigerant Capacity |
144.2 kW |
|
Nominal Input Power |
21.6 kW |
|
COP |
5.29 kW/kW |
| Heat Recovery |
Heat Recovery Volume |
135.8 kW |
|
Nominal Input Power |
21.6 kW |
| IPLV |
|
6.85 kW/kW |
| Power Supply |
|
380 (400) /3/50 V/Ph/Hz |
| Rated Current |
|
44.1 A |
| Maximum Continuous Running Current |
|
69.6 A |
| Compressor |
Model |
Hermatic scroll |
|
Quantity |
3 Set |
| Condenser |
Diameter of water pipe |
DN65 mm |
|
Connection type |
Clamp |
|
Nominal water flow |
24.6 m³/h |
|
Water pressure drop |
63 kPa |
| Evaporator |
Diameter of water pipe |
DN65 mm |
|
Connection type |
Clamp |
|
Nominal water flow |
19.6 m³/h |
|
Water pressure drop |
28 kPa |
| Outline Dimension |
Height |
1330 mm |
|
Length |
1480 mm |
|
Width |
775 mm |
| Weight |
Transport weight |
540 kg |
|
Operating weight |
620 kg |

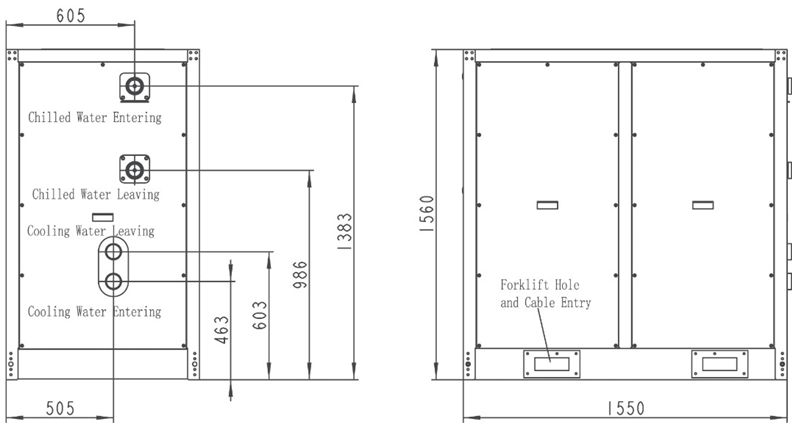

| Outline Dimension (with packaging) |
Height |
1560 mm |
|
Length |
1550 mm |
|
Width |
910 mm |
| Weight (with packaging) |
Transport weight |
655 kg |
|
Operating weight |
735 kg |
