| Refrigerant |
|
|
R410A |
| Refrigeration |
Nominal Refrigerant Capacity |
kW |
151.9 |
|
Nominal Input Power |
kW |
28.7 |
|
COP |
kW/kW |
5.29 |
| Heat Recovery |
Heat Recovery Volume |
kW |
180.6 |
|
Nominal Input Power |
kW |
28.7 |
| IPLV |
|
kW/kW |
6.85 |
| Power Supply |
|
V/Ph/Hz |
380 (400) /3/50 |
| Rated Current |
|
A |
58.8 |
| Maximum Continuous Running Current |
|
A |
92.8 |
| Compressor |
Model |
|
Hermatic scroll |
|
Quantity |
Set |
4 |
| Condenser |
Diameter of water pipe |
mm |
DN65 |
|
Connection type |
|
Clamp |
|
Nominal water flow |
m³/h |
32.7 |
|
Water pressure drop |
kPa |
62 |
| Evaporator |
Diameter of water pipe |
mm |
DN65 |
|
Connection type |
|
Clamp |
|
Nominal water flow |
m³/h |
26.1 |
|
Water pressure drop |
kPa |
30 |
| Outline Dimension |
Height |
mm |
1330 |
|
Length |
mm |
1480 |
|
Width |
mm |
775 |
| Weight |
Transport weight |
kg |
690 |
|
Operating weight |
kg |
770 |

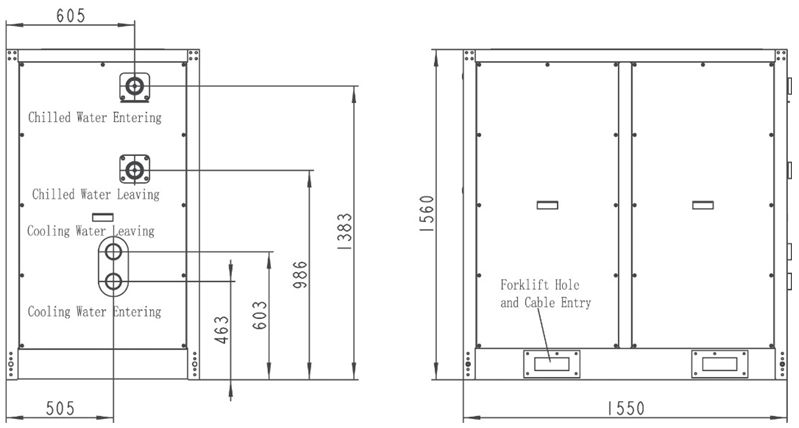

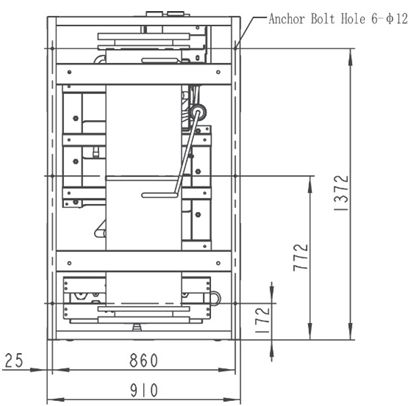

| Outline Dimension (with packaging) |
Height |
mm |
1560 |
|
Length |
mm |
1550 |
|
Width |
mm |
910 |
| Weight (with packaging) |
Transport weight |
kg |
840 |
|
Operating weight |
kg |
920 |
