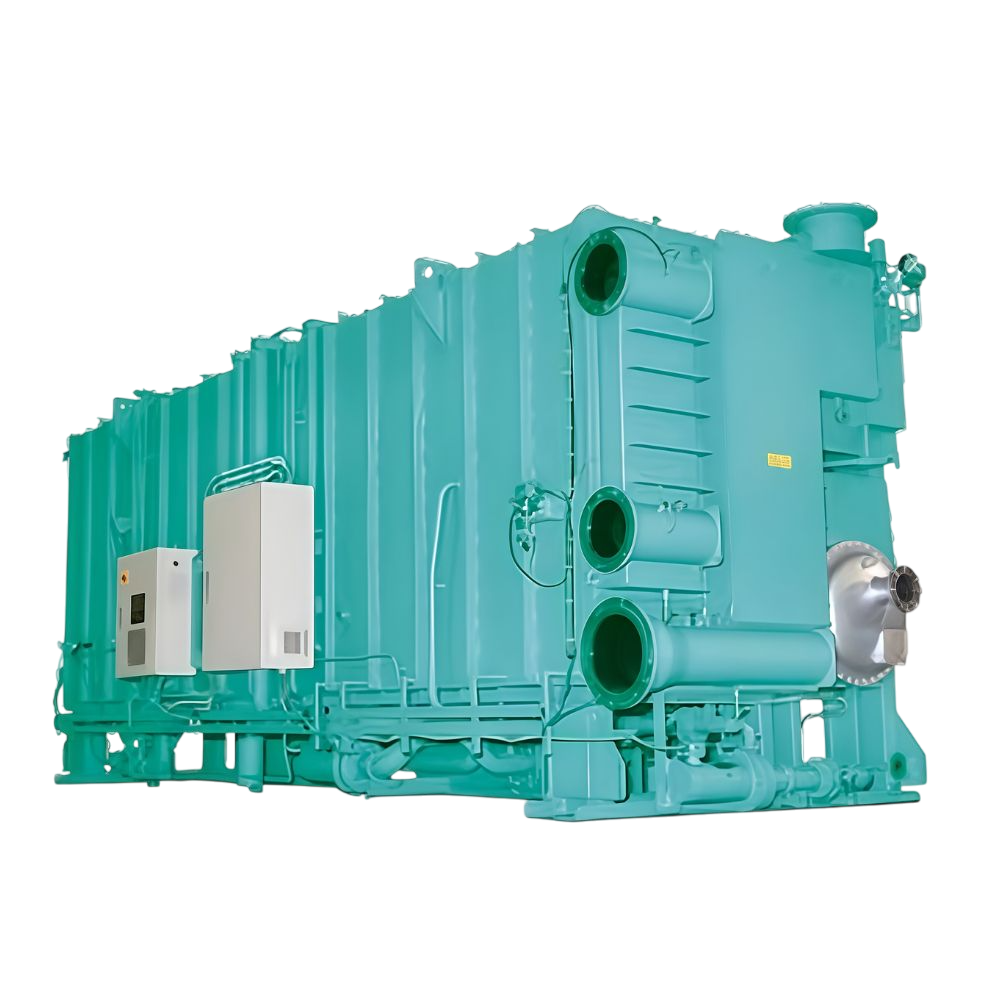

150TR steam-driven absorption chiller, ideal for facilities with waste steam or limited electricity.
A high-efficiency thermal-driven chiller using steam pressure to generate chilled water without compressors. Best suited for large-scale HVAC systems in hospitals, hotels, or manufacturing plants.
Key Features:
COP: 1.43
Fully powered by steam (2–10 bar)
Eco-friendly (no CFCs or HFCs)
Minimal electricity required
Technical Specifications:
| Parameter | Value |
|---|---|
| Model | YHAU-CWL 248EX-B |
| Cooling Capacity | 527.5 kW / 150 USRT |
| COP | 1.43 |
| Chilled Water In/Out | 10.6°C / 7.0°C |
| Flow Rate (Chilled) | 125 m³/h (551 GPM) |
| Cooling Water In/Out | 32.0°C / 37.1°C |
| Flow Rate (Cooling) | 151 m³/h (666 GPM) |
| Steam Consumption | 2,151 kg/h (4,732 lb/h) |
| Steam In/Out Pressure | 3.5 bar / 0.5 bar |
| Power Consumption | 19.7 kW |
| Dimensions (L×W×H) | 6,310 × 2,850 × 3,850 mm |
| Operating Weight | 33.8 tons |
| Shipping Weight | 28.8 tons |
