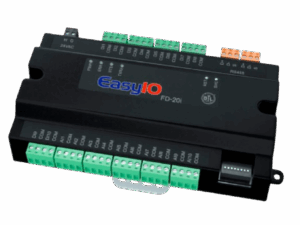

EasyIO FD-20i Input Modbus IO EXPANSION MODULE

EasyIO FD-20i Input Modbus IO EXPANSION MODULE
Product Descriptions

20-POINT IO EXPANSION MODULE

The FD-20i provides input point expansion capacity for all FS, FG+ and FW series controllers.

  • 48 Mhz ARM Cortex-A0 processor for the I/O
  • Supports BACnet MSTP or Modbus RTU

Product Overview

EasyIO FD-20i Input Modbus/Bacnet Module, The FD20i has 20 input points, supports BACnet MSTP or Modbus RTU as a selectable function and is equipped with a RS485 port. The inputs include 10 Digital Inputs (DI) and 10 Universal Inputs (UI) supporting resistance based (10K or 20K) or digital dry contact.





Features and Characteristics

  • BACnet MSTP Server
  • 2 x RS485
  • Modbus RTU Slave
  • 24V AC/DC Power
  • 48 Mhz ARM Cortex-A0 processor for the I/O
  • 10x UI
  • 32KB RAM
  • 10x DI
  • 256KB Flash Memory
